關于icemcfd塊合并問題(三角翼示例）

2016-10-07 by:CAE仿真在線來源:互聯網

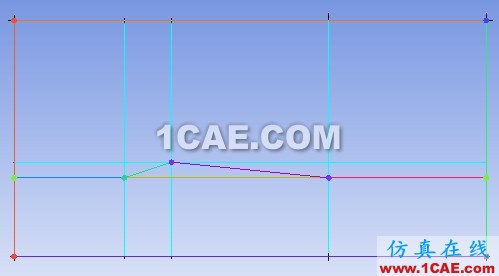

關于icem wbrcfd wbr塊合并問題(三角翼示例)

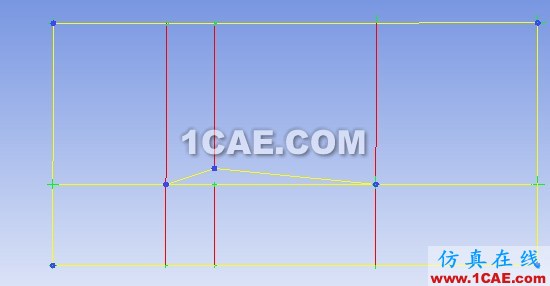

加號處用move vertex合并為一處,此時加號右邊的兩條線合并為一條。當然,兩條線之間的塊依然存在,而此時如果不刪除這個塊的話,最后生成的網格就會出現負體積(錯誤)。刪除后重新生成網格就會解決問題。

上面的方法是錯誤的 (會生成如下錯誤)

> Reading "F:\Fluent Example\ICEM CFD\feiji.msh"...

17290 nodes.

16833 quadrilateral cells, zone 13.

33211 2D interior faces, zone 14.

93 2D velocity-inlet faces, zone 15.

181 2D velocity-inlet faces, zone 16.

93 2D pressure-outlet faces, zone 17.

181 2D pressure-outlet faces, zone 18.

98 2D wall faces, zone 19.

98 2D wall faces, zone 20.

132 2D wall faces, zone 21.

Building...

mesh

Error:

FLUENT received fatal signal (ACCESS_VIOLATION)

1. Note exact events leading to error.

2. Save case/data under new name.

3. Exit program and restart to continue.

4. Report error to your distributor.

Error:

FLUENT received fatal signal (ACCESS_VIOLATION)

1. Note exact events leading to error.

2. Save case/data under new name.

3. Exit program and restart to continue.

4. Report error to your distributor.

Error Object: #f

正確方法:

使用merge vertex 方法

merge vertex >collapse blocks>坍塌三角翼兩遍的兩個矩形block(因?yàn)槿绻苯觿h除的話在某一為零的面區域里就沒有網格劃分,因此會出現fatal error),之后建立恰當?shù)挠成潢P(guān)系即可!
