Designing and manufacturing woodworking projects requires a great amount of attention to detail. When it comes to bringing concepts to life in CAD, this means using dedicated woodworking features that require solutions specifically created for woodworking. This is especially important in the era of custom-made projects, when woodworkers must have strong modeling capabilities mixed with specific tools to address unique material and processing requirements

With SWOOD from EFICAD and SOLIDWORKS, woodworkers have the best design tools for meeting woodworking requirements. EFICAD, a SOLIDWORKS Solution Partner since 2001, has invested in CAD/CAM solutions for the woodworking industry for more than 25 years. SWOOD, created specifically for woodworkers, provides a unique tool that manages woodworking projects from design to production. For SOLIDWORKS users, SWOOD provides material and panel processing needs as well as native features in SWOOD libraries for taking on edge banding, grain direction, and laminates. This removes the need to complete properties to create a BOM. SWOOD takes care of the process with a simple drag and drop. Further, when using SWOOD to create parametric furniture, custom rules can be used to ensure models will fit predetermined requirements with a few drag-and-drop gestures.

來自EFICAD的SolidWorks SWOOD,滿足木工要求的最佳設計工具。法國EFICAD,自2001年以來就是SOLIDWORKS解決方案合作伙伴,投身于木工行業CAD/ CAM解決方案的時間已超過25年。SWOOD,專門為木工提供了一個獨特的工具,用于木工項目管理,從設計到生產。對于SolidWorks用戶,SWOOD提供材料和板材加工需求以及在SWOOD庫,原生提供的封邊條,紋理方向,和層壓板庫。 SWOOD只需要通過簡單的拖放。此外,使用SWOOD創建參數家具的時候,自定義規則可以用來確保模型適合與一些拖和拖放手勢預定要求。* J" A' N3 J% _# k5 j, w- ^

solidworkss木工設計插件：swood for solidworkssolidworks simulation培訓教程圖片1

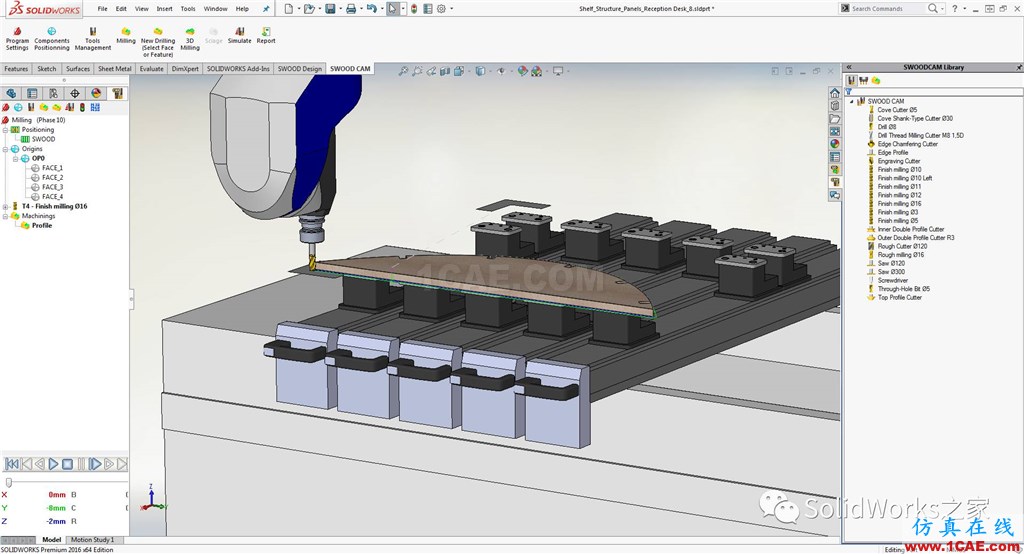

With SWOOD integrated directly into SOLIDWORKS, there are several pain points you will no longer need to address. These include the need to export drawings to DXF files, dealing with oversized systems that do not recognize multi-spindle drilling, programing all parts from scratch every time you make a change, and programing suction cups and beams before launching a program. SWOOD CAM embeds all of these technologies and provides SOLIDWORKS users with a fully integrated CAM system with nesting capabilities. In addition, as part of the SOLIDWORKS ecosystem, SWOOD can be used with other SOLIDWORKS solutions, such as SOLIDWORKS PDM and SOLIDWORKS Visualize to name two.1
9 t; C# b3 R( j6 ~
隨著SWOOD直接集成到SolidWorks中,您有幾個痛點將不再需要解決。其中包括必要的圖紙導出到DXF文件,處理不識別多主軸鉆床超大型系統,每次從頭開始花時間編程,。 SWOOD CAM可以快速調整來確定自己的切割工具,將它們添加到圖書館,在后續的使用過程。因此創建數據庫預定義的工具,進一步豐富木材加工策略可以使用現成的技術與木材加工庫“拖放,并提供了SolidWorks用戶使用排料功能。此外,作為SOLIDWORKS生態系統的一部分,SWOOD可以與其它SOLIDWORKS解決方案,如SOLIDWORKS PDM和SOLIDWORKSvisualize。

solidworkss木工設計插件：swood for solidworkssolidworks simulation培訓教程圖片2

Because of EFICAD’s long experience and collaboration with different CNC brands, a lot of post-processors are available, from G-Code to WOP system. SWOOD encodes full project assemblies at once and generates all the production documents (stocks list, hardware list, labels, costing, CSV or XML export for ERP).
由于EFICAD的長期與不同的數控品牌合作,有很多后置處理器可供選擇,比如使用G-代碼的WOP(面向車間的編程)系統。 SWOOD一次進行編碼整個項目程序集和生成所有生產文件(股票列表,列表中的硬件,標簽,成本,CSV或ERP XML導出)。
The most highly trusted CAD platform coupled with SWOOD suggests new design opportunities for woodworkers. The clearest evidence of this comes from the main European SOLIDWORKS resellers across more than 20 countries that have quickly made SWOOD the choice for customers in the woodworking industry.
