Matlab一個錯誤引發的血案：??? Error using ==> str2num Requires string or character array input.【轉發】

2017-05-25 by:CAE仿真在線來源:互聯網

Matlab總遇到一些神奇的問題,讓人摸不著頭腦。昨天編寫程序的時候遇到一個讓我十分火大的問題,也是自己的matlab基礎不好吧。

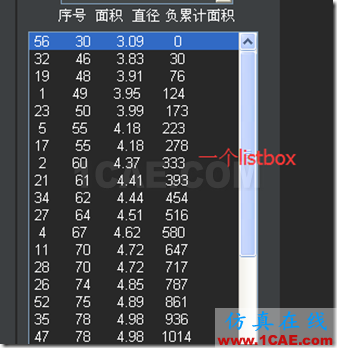

先描述一下問題,再GUI界面有個listbox,Tag屬性是’listbox1’,里面是這樣的數據,我的目的是要把這些數據轉換成數值類型的矩陣:

list_string = get(handles.listbox1,'string')
data=str2num((list_string));

使用上面兩行代碼進行轉換卻異常出錯了!看后臺的錯誤描述如下:

??? Error using ==> str2num
Requires string or character array input.

Error in ==> wsy>pushbutton24_Callback at 654
data=str2num((list_string));

Error in ==> gui_mainfcn at 75
feval(varargin{:});

Error in ==> wsy at 16
gui_mainfcn(gui_State, varargin{:});

??? Error while evaluating uicontrol Callback.

??? Error using ==> feval
Undefined command/function 'Untitled_1_Callback'.

Error in ==> gui_mainfcn at 75
feval(varargin{:});

Error in ==> wsy at 16
gui_mainfcn(gui_State, varargin{:});

??? Error while evaluating uimenu Callback.

Matlab拋出的異常說明str2num函數使用錯誤,參數必須是字符數組(char array)或者是字符串。在后臺看了下獲得的listbox里面的數據如下:

list_string =

' 56 30 3.09 0'
' 32 46 3.83 30'
' 19 48 3.91 76'
……(省略一大堆數據)
' 31 301 9.79 6634'
' 60 429 11.69 6935'

對呀!尼瑪難道這個不是符合要求的數據?不信我們?cè)诮换ソ缑胬锩孀鰝€(gè)試驗:

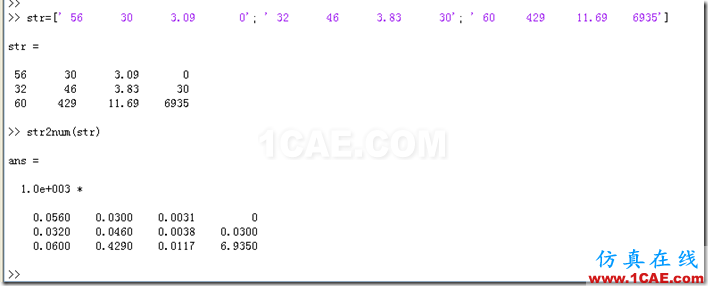

str=[' 56 30 3.09 0'; ' 32 46 3.83 30'; ' 60 429 11.69 6935']

str2num(str)

難道不應該是這樣子的嗎?好吧,可能不應該是數組吧,我又做了如下的實驗:

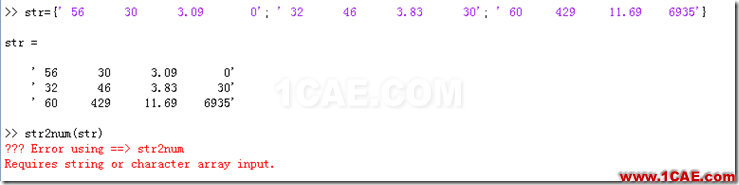

str={' 56 30 3.09 0'; ' 32 46 3.83 30'; ' 60 429 11.69 6935'}

str2num(str)

果然報了相同的錯誤!在baidu和論壇里面各種查,基本上沒有什么滿意的答案,后來只好求助于文檔:

首先來看看str2num函數的用法:

>> help str2num
STR2NUM Convert string matrix to numeric array.
X = STR2NUM(S) converts a character array representation of a matrix of
numbers to a numeric matrix. For example,

S = ['1 2' str2num(S) => [1 2;3 4]
'3 4']

The numbers in the string matrix S should be ASCII character
representations of a numeric values. Each number may contain digits,
a decimal point, a leading + or - sign, an 'e' or 'd' preceding a
power of 10 scale factor, and an 'i' or 'j' for a complex unit.

If the string S does not represent a valid number or matrix,
STR2NUM(S) returns the empty matrix. [X,OK]=STR2NUM(S) will
return OK=0 if the conversion failed.

CAUTION: STR2NUM uses EVAL to convert the input argument, so side
effects can occur if the string contains calls to functions. Use
STR2DOUBLE to avoid such side effects or when S contains a single
number.

str2num的功能是將字符串矩陣轉換成數值數組,字符串必須是ASCII碼表中的可轉化成數值的字符,如果字符串?dāng)?shù)組不是一個有效的數字或者不能過程一個矩陣,str2num函數就會返回一個空的矩陣,[X,OK]=STR2NUM(S),如果轉換失敗OK=0.

注意:str2num使用的是eval函數來轉換輸入的參數,所以如果字符串里面包含了函數的調用,就會產生副作用,推薦使用str2double來避免副作用(當待轉換字符串矩陣S包含單個數字的時候)。

相信很多朋友都是看了這一段文檔,從此走向一條不歸之路。首先我們從這段文檔描述中可以獲取至少三個有用的信息

①str2num作用的對象是‘string matrix’也就是我們的錯誤描述中的string or characher array.

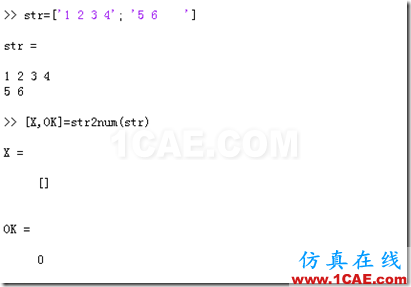

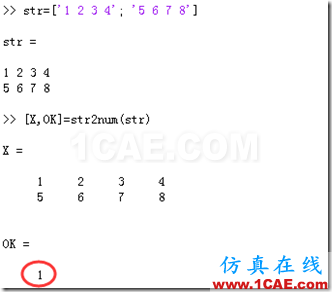

②轉換失敗就會[X, OK] 中OK就會返回0,轉換成功就會返回1(實驗可得)。如下例子:

str=['1 2 3 4'; '5 6 ']

[X,OK]=str2num(str)

③當待轉換字符數組是單個數字的時候推薦使用str2double進行轉換,避免副作用,如下例子:

Examples
str2double('123.45e7')
str2double('123 + 45i')
str2double('3.14159')
str2double('2.7i - 3.14')
str2double({'2.71' '3.1415'})
str2double('1,200.34')

得到如下結果:

1.2345e+009
1.2300e+002 +4.5000e+001i
3.1416
-3.1400 + 2.7000i
2.7100 3.1415
1.2003e+003

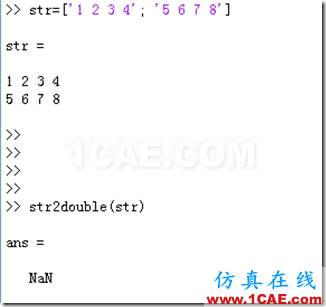

按照文檔的推薦,str2num適用與轉換單個數字。所以

轉換就會失敗!

我們注意到上面的example中以這樣一個例子:str2double({'2.71' '3.1415'}),看一下文檔的描述:

>> help str2double
STR2DOUBLE Convert string to double precision value.
X = STR2DOUBLE(S) converts the string S, which should be an
ASCII character representation of a real or complex scalar value,
to MATLAB's double representation. The string may contain digits,
a comma (thousands separator), a decimal point, a leading + or - sign,
an 'e' preceding a power of 10 scale factor, and an 'i' for
a complex unit.

If the string S does not represent a valid scalar value, STR2DOUBLE(S)
returns NaN.(轉換失敗返回NaN)

X = STR2DOUBLE(C) converts the strings in the cell array of strings C
to double. The matrix X returned will be the same size as C. NaN will
be returned for any cell which is not a string representing a valid
scalar value. NaN will be returned for individual cells in C which are
cell arrays.

注意到我標出的紅色部分,‘the strings in the cell array ’也就是說str2double還可以轉換cell 類型的數據。

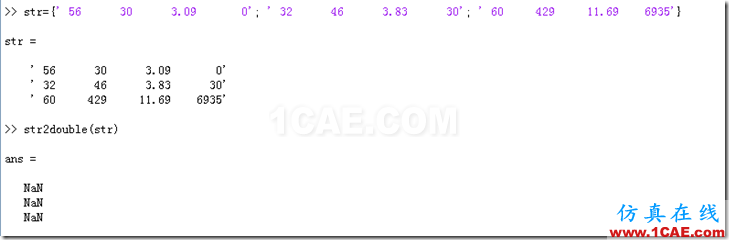

但是使用str2double轉換我們需要轉換的數據還是不行呀:

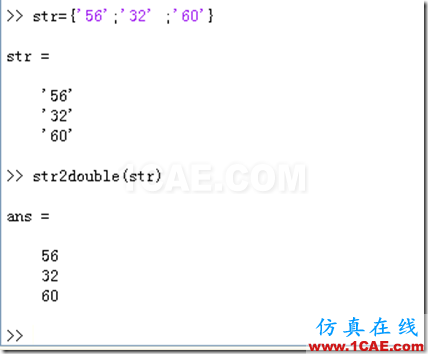

好吧是我讀文檔不認真,人家都說了是轉換單個數字,改成這樣就可以了:

但是現在的問題是我要轉換一行里面由于多個數字的數據怎么辦呢?

回到本文開頭的位置:你會發現str2num的轉換str只是一個‘[]’和一個‘{}’的區別就能轉換了,由此可以推測他們的數據類型是不一樣的,再結合str2double里面的描述可以推測‘{}’代表的就是‘cell’數據類型。

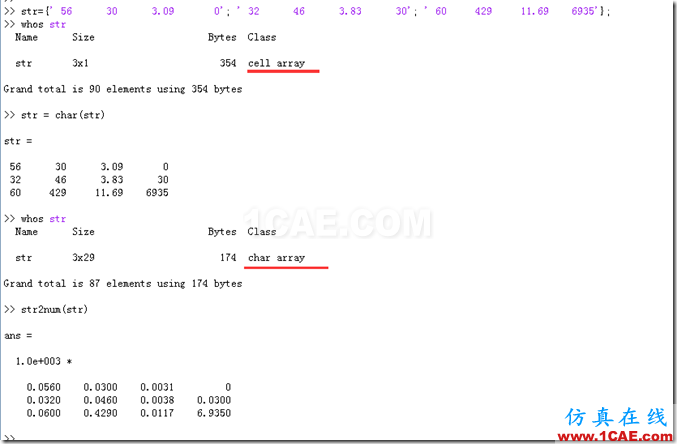

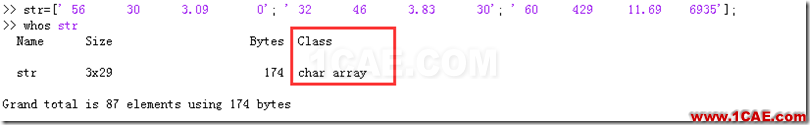

為了驗證他們的數據類型我們做如下實驗:

果然,他們的數據類型是不一樣的!并且cell array所占的空間要大得多幾乎是兩倍char array的大小。

那好了,現在的任務明確了,只需要將‘cell’類型的數據轉換成數組類型就行了。

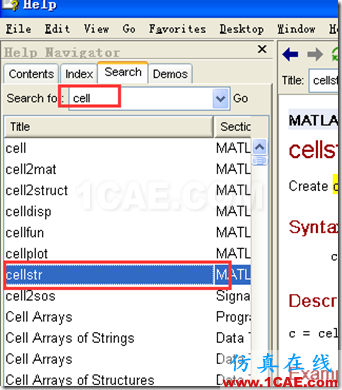

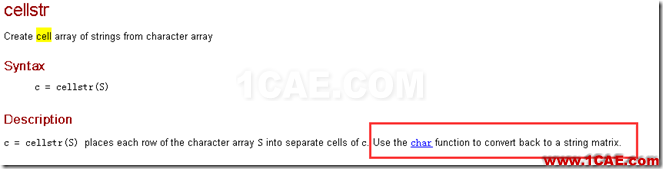

我們看一下文檔:

Create cell array Syntax

c = cell(n)
c = cell(m,n) or c = cell([m n])
c = cell(m,n,p,...) or c = cell([m n p ...])
c = cell(size(A))
c = cell(javaobj)

Description

c = cell(n) creates an n-by-n cell array of empty matrices. An error message appears if n is not a scalar.
c = cell(m,n) or c = cell([m,n]) creates an m-by-n cell array of empty matrices. Arguments m and n must be scalars.
c = cell(m,n,p,...) or c = cell([m n p ...]) creates an m-by-n-by-p-... cell array of empty matrices. Arguments m, n, p,... must be scalars.
c = cell(size(A)) creates a cell array the same size as A containing all empty matrices.
c = cell(javaobj) converts a Java array or Java object javaobj into a MATLAB cell array. Elements of the resulting cell array will be of the MATLAB type (if any) closest to the Java array elements or Java object.
