Function: exampleDLAR
% 程序版權歸原作者所有。本人只是對源代碼略作注釋。目的是供自己今后使用少花時間。
% 該程序由原作者免費共享提供,不作商業用途的前提下,本人才得以拿出來供同行
% 及對matlab編程有興趣的朋友分享、共同學習。
% AUTHORS:
% Eloi Figueiredo
%
% LA-CC-10-032
% Copyright (c) 2010, Los Alamos National Security, LLC
% All rights reserved.
% *******
%% Load Raw Data
%%
% Load data set:
load('data3SS.mat'); %導入數據文件
% 原數據格式為8192個樣本點,5個通道,第1通道為激勵,第2至5通道為響應;
% 數據第3維為測量次數,共170次,
data=dataset(:,2:5,:); %也就是說本程序使用的數據為全部170次測量的第2至5通道響應數據

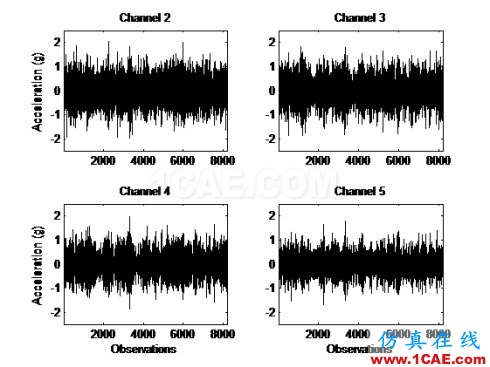

% 以下代碼為將第1次測量的響應數據4個通道畫在圖中。效果如下Figure 1
% Plot time histories from the baseline condition (Channel 2-5):
figure
for i=1:4;
subplot(2,2,i)
plot(data(:,i,1),'k')
title(['Channel ',num2str(i+1)])
set(gca,'YTick',-2:2,'Xlim',[1 8192],'Ylim',[-2.5 2.5])
if i==3 || i==4, xlabel('Observations'); end
if i==1 || i==3, ylabel('Acceleration (g)'); end
end
%確定AR模型階數為15,這里選擇了確定的數,實際在處理未知數據時需要進行試算確定
% AR model order:
arOrder=15;
%% 估計AR模型參數,就是AR系數,下面程序?qū)⒂?jì)算出170次測量數據的AR系數
% 4個通道,170次,每個響應的AR系數有15個,最后形成的矩陣為170*60
% Estimation of the AR Parameters:
[arParameters]=arModel_shm(data,arOrder);
[n m]=size(arParameters); % n = 170, m = 60;

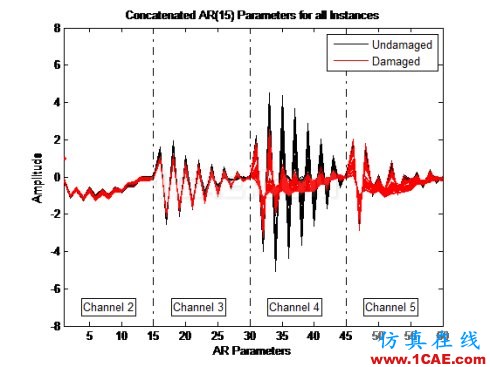

% 畫出AR系數圖,并將未損用黑色表示,損傷用紅色表示,如Figure 2
% Plot test data:
figure;
plot(1:m,arParameters(1:90,:)','k',1:m,arParameters(90:170,:)','r')
title(['Concatenated AR(',num2str(arOrder),') Parameters for all Instances'])
legend('Undamaged','Damaged')
xlabel('AR Parameters')
ylabel('Amplitude')
w=8;
set(gca,'Xlim',[1 m])
M(1,1:9)='Undamaged'; M(2,1:7)='Damaged';
legend([line('color','k');line('color','r')],M);
h(1)=line([m/4;m/4],[-w w],'color','k','lineStyle','-.');
h(2)=line([m/4*2;m/4*2],[-w w],'color','k','lineStyle','-.');
h(3)=line([m/4*3;m/4*3],[-w w],'color','k','lineStyle','-.');
text(4,-7,'Channel 2','Color','k','EdgeColor','k','BackgroundColor','w')
text(18,-7,'Channel 3','Color','k','EdgeColor','k','BackgroundColor','w')
text(33,-7,'Channel 4','Color','k','EdgeColor','k','BackgroundColor','w')
text(48,-7,'Channel 5','Color','k','EdgeColor','k','BackgroundColor','w')
% 以下特征提取方法與診斷過程參考文獻[1]
% 檢測方法原理如下
%
% 1. 訓練樣本取自結構健康狀態的特征數據,計算其均值 與協方差矩陣
% 2. 測試樣本取自結構任意狀態的特征數據,計算其到訓練樣本的Mahalanobis平方距離
%
%% Data Normalization for Novelty Detection
% The Mahalanobis-based machine learning algorithm is used to normalize the
% features and reduce each feature vector to a score.
DI=zeros(17,4);
scoreData=zeros(17,arOrder);
cnt=1;
for i=1:4;
% 取前9個健康工況第1至9次測量的AR系數作為訓練樣本,每個工況的第10次作為測試樣本
for j=1:9;
learnData(j*9-8:j*9,:)=arParameters(j*10-9:j*10-1,cnt:cnt+arOrder-1);
end
scoreData(1:17,:)=arParameters(10*(1:17),cnt:cnt+arOrder-1);
% 9個工況的前9次測量的樣本進行訓練,獲得模型model
[model]=learnMahalanobis_shm(learnData);
% 用model計算17個工況第10次測量的測試樣本,
DI(:,i)=scoreMahalanobis_shm(scoreData,model);
cnt=cnt+arOrder;
end
%取指標的相反數
DI=-DI;

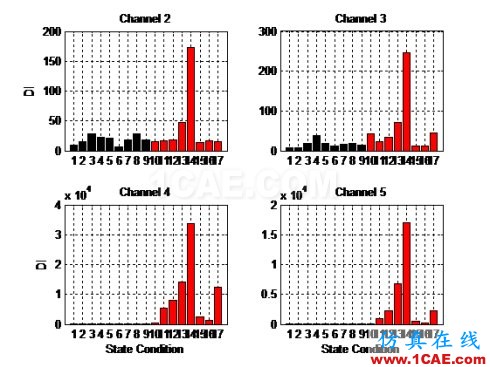

% 作圖,如Figure 3
%% Damage Location
%%
% Plot DIs from Channel 2-5:
figure
for i=1:4;
subplot(2,2,i)
bar(1:9,DI(1:9,i),'k'); hold on; bar(10:17,DI(10:17,i),'r')
title(['Channel ',num2str(i+1)])
set(gca,'Xlim',[0 length(DI)+1],'XTick',1:length(DI))
grid on
if i==3 || i==4, xlabel('State Condition'); end
if i==1 || i==3, ylabel('DI'); end
end
Figure1
Figure2
Figure3
%%
% The figure above shows that the extracted features from Channels 2-3 are
% lesser sensitive than from Channels 4 and 5 to discriminate the undamaged
% (1-9) and damaged (10-17) state conditions. This is an indication that
% the source of damage is located near to Channels 4 and 5.
%%
% See also:
%
% <exampleDLARX.html Damage Location using ARX Parameters from an Array of
% Sensors>
參考文獻
[1] Worden, K., Manson, G., Fieller, N. R. J. Damage detection using outlier analysis[J]. Journal of Sound and Vibration, 2000, 229(3): 647-667.
